Characteristics of wood :

  • Hard, compact , fiberous and porous
  • Good wood gives a rich, warm and beautiful surface.

Wood is used for the construction of:

  • Floor, Furniture, Walls
  • Incidental furnishing (lampshades, picture frames)
  • Kitchen & restaurant ware

Description

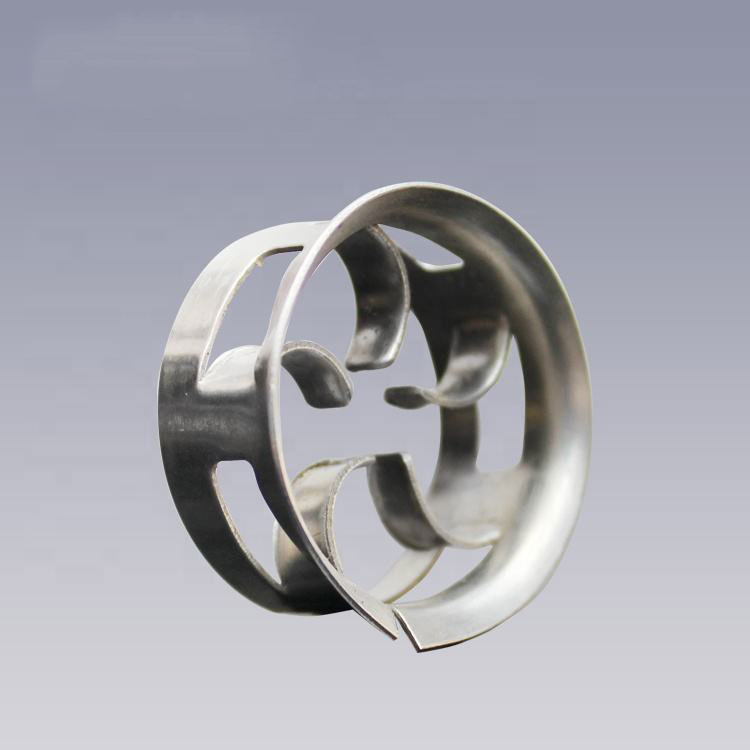

cascade mini ring structure

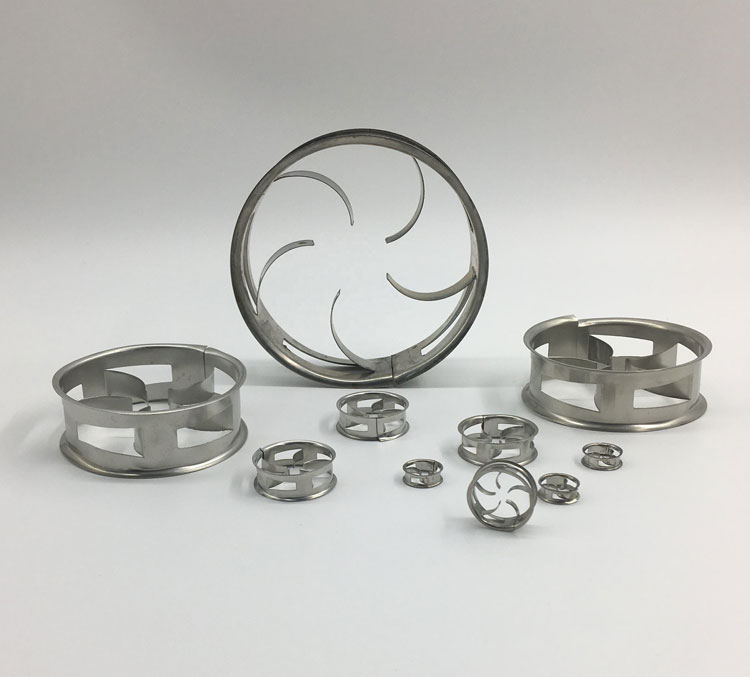

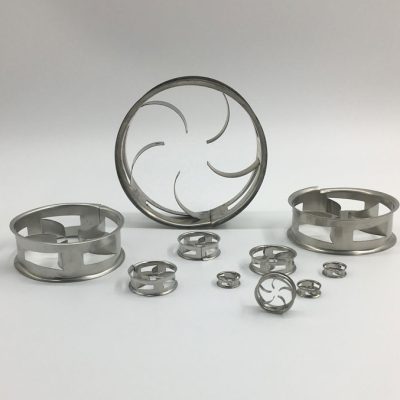

Metal Cascade Ring, or its miniature counterpart, features a height-to-diameter ratio of 1/2 or 1/3, with the addition of cone-shaped flanging at one edge. This design minimizes resistance as air passes through the bed layer and enhances voidage. Equipped with one or two beveled edges in their sidepieces, these rings exhibit superior mechanical strength and greater gas throughput capacity compared to pall rings. Metal Cascade Mini Rings (CMR Packings) are crafted from materials such as carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc.), and aluminum alloy. Their thin walls, heat resistance, high void ratio, high capacity, low resistance, and superior separation efficiency make them well-suited for rectification towers operating under vacuum. This adaptability enables them to effectively treat thermo-sensitive, decomposable, polymerizable, or cokable systems. As a result, they find extensive use in packing towers within the petrochemical industry, chemical fertilizer industry, and environmental protection applications.

Specification of Metal Cascade mini rings

Note: The provided details are for stainless steel (AISI304) at the specified thickness.
If there is a need for variations in wall thickness, alternative options are available upon inquiry. Materials offered include carbon steel and an array of stainless steel grades such as 304, 304L, 410, 316, and 316L.

Advantages of Metal Cascade Mini Ring

Pressure Drop Reduction:
The Cascade Mini Ring effectively reduces pressure drop by featuring its largest opening predominantly aligned with the vapor/liquid flow direction. This streamlined design facilitates easy passage, resulting in a significant decrease in pressure drop.

Enhanced Plant Capacity:
The reduction in pressure drop provided by Cascade Mini Rings directly contributes to increased plant capacity. By moving the operating point away from the critical pressure drop point where flooding occurs, additional vapor/liquid handling is enabled, thereby enhancing overall plant capability.

Improved Fouling Resistance:
The directional positioning of the rings, with the largest opening aligned in the direction of flow, leads to improved resistance to fouling. Solids entering the packed bed are more efficiently flushed through the packing matrix due to this configuration.

• Heightened Operational Efficiency:
Cascade Mini Rings contribute to higher operational efficiency through their preferential orientation. The majority of the ring surface is positioned vertically rather than horizontally, optimizing mass transfer. Efficient wetting of available surface area is essential for high efficiency, and the Cascade Mini Ring minimizes the impact of dry surfaces, resulting in significantly improved plant operational efficiency.

Metal Cascade Mini Ring Application

Metal Cascade Mini Rings are widely used in desulfurization and decarburization system in compound ammonia plant, decompressed plant in crude oil separated plant, all kind of separation process such as separation of methanol, separation of organic acid, and used in absorb or dis-absorb tower.

Size available:

16.25.38.50.76.100mm

Packing & Delivery for Metal Cascade Ring

metal tower packing package

Plastic woven bag, ton bag, carton box, or packaged as your request.

Certificate

Our Service

1. Free Sample
2. Full quality and material certification available
3. Available from stock
4. Available in large 1m³ bulk bags, or smaller 100L sacks
5. No minimum order quantities
6. Mechanically robust and suitable for use in deep packed beds
