Description

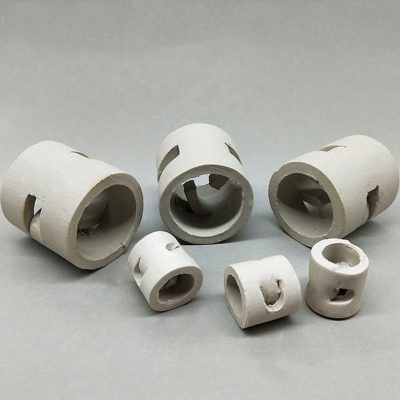

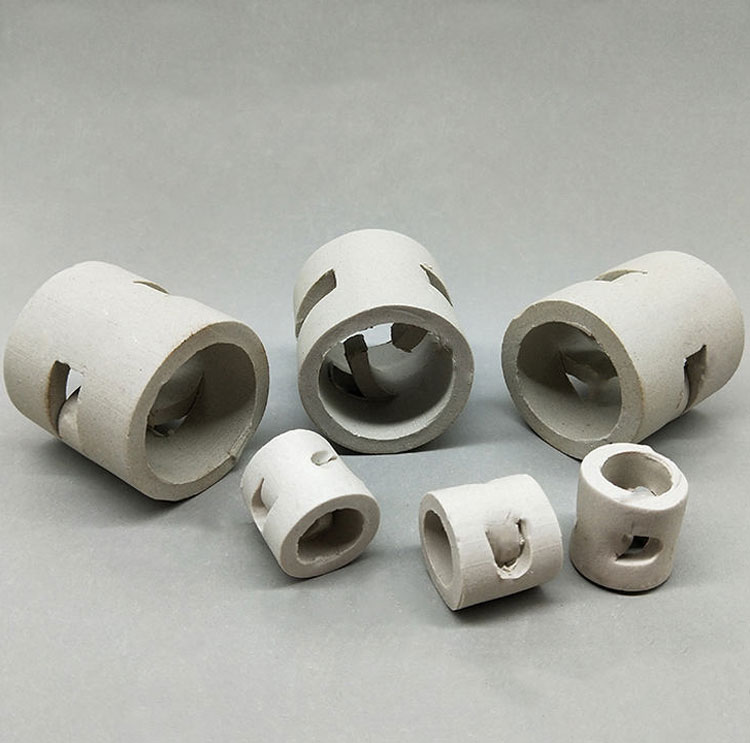

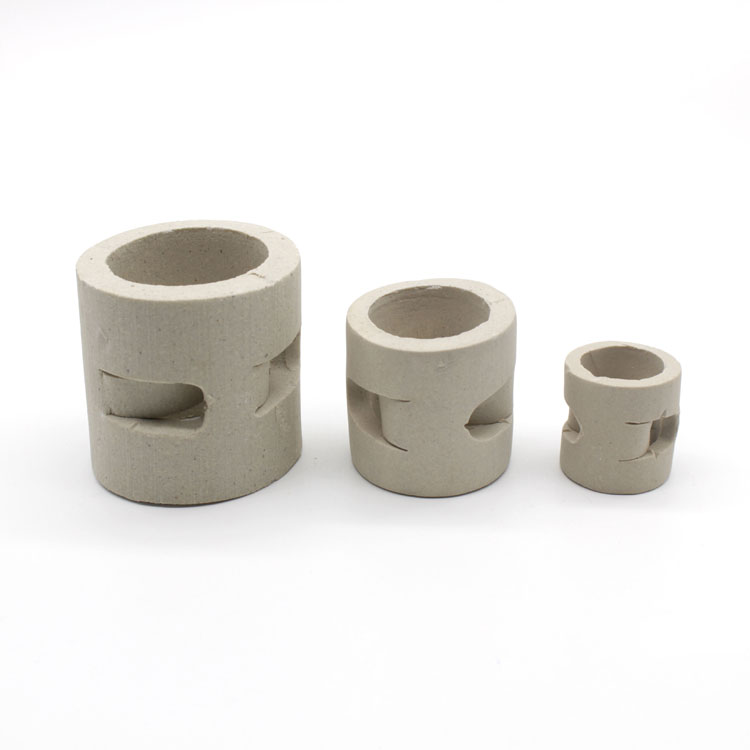

Ceramic Pall Ring is an advanced iteration of the raschig Ring, featuring an open-hole design with a consistent height and diameter. Each ring has 5 inward-facing ligules on every level, creating windows that make up 30% of the total wall surface. This unique structure facilitates the unhindered flow of liquid and gas through the packing tower.
The open configuration enhances fluid distribution, resulting in greater capacity and reduced pressure drop compared to the Ceramic Raschig Ring. With a remarkable ability to withstand corrosion from various sources, including organic acids, inorganic acids, and organic solvents (excluding hydrofluoric acid), the Ceramic Pall Ring is well-suited for applications in both high and low-temperature environments with strong corrosion resistance requirements. Ceramic pall ring packing widely employed in chemical, metallurgical, gas, petroleum, and oxygen generator industries, the Ceramic Pall Ring finds applications in processes such as drying, absorbing, cooling, washing, and regeneration towers.
Specification of Ceramic Pall rings

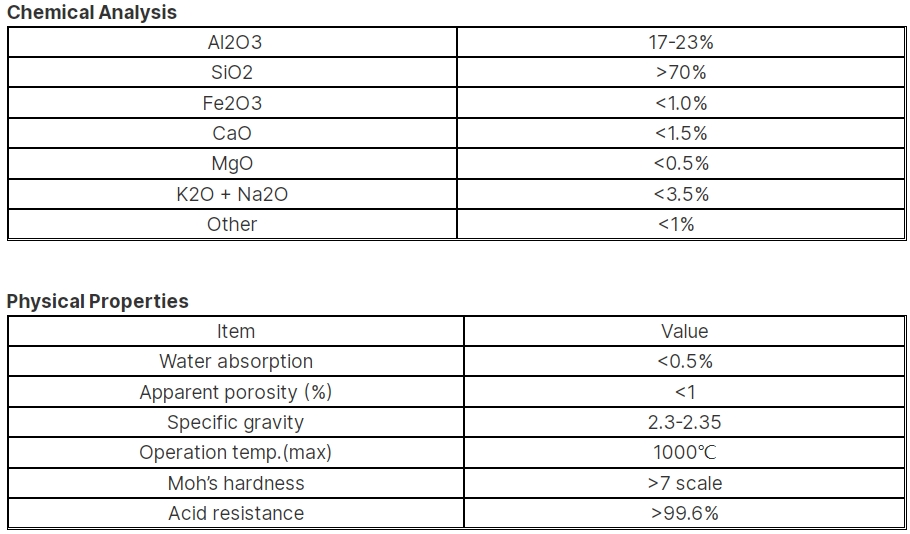

Chemical and physical properties:
ceramic pall ring data just for reference.
Ceramic Pall Ring Application
Ceramic Pall Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, Industrial oxygen producing industry, etc.
Packing & Delivery for Ceramic Pall Ring
Plastic woven bag, ton bag, carton box, or packaged as your request.
Certificate
Our Service
1. Free Sample
2. Full quality and material certification available
3. Available from stock
4. Available in large 1m³ bulk bags, or smaller 100L sacks
5. No minimum order quantities
6. Mechanically robust and suitable for use in deep packed beds
