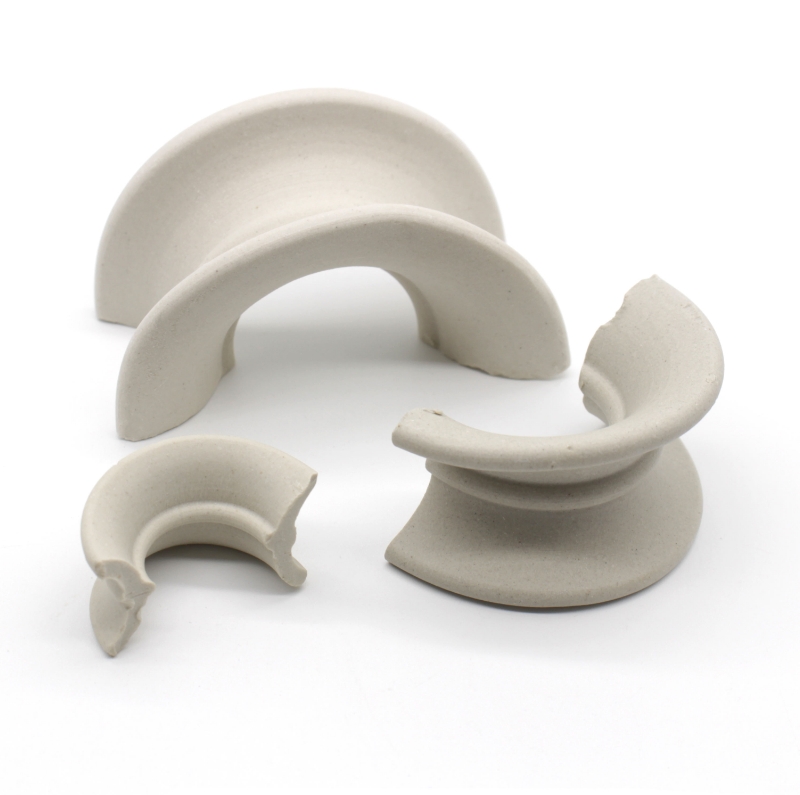

Description

Ceramic Intalox Saddles, also known as Ceramic Saddle Packing Rings, represent an advancement over traditional ceramic arc saddles by altering the arched surface and introducing variations in the interior radius of curvature. This modification effectively addresses the issue of nesting. The ceramic saddle ring bed exhibits a substantial void ratio, with the inner layer predominantly comprising circular arc-shaped liquid passages. This design minimizes gas resistance through the bed and reduces the radial diffusion coefficient as liquid flows downward.

The ceramic saddle ring combines features of both ring and saddle shapes, facilitating liquid distribution and enhancing gas passage. With high density and exceptional resistance to acids and heat, the ceramic saddle ring withstands various inorganic acids, organic acids, and solvents, excluding hydrofluoric acid. Utilizing a continuous extrusion process, the ceramic saddle ring boasts advantages such as high flux, low pressure, and high efficiency.

As for resist corrosion from a wide range of substances, offering versatility for applications in drying columns, absorbing columns, cooling towers, scrubbing towers, and activator columns across chemical, metallurgical, coal gas, and oxygen-producing industries.

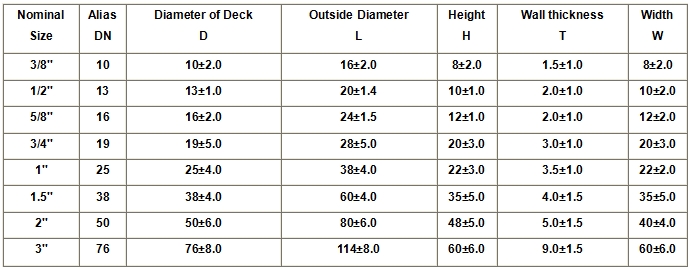

Dimension of ceramic intalox saddless

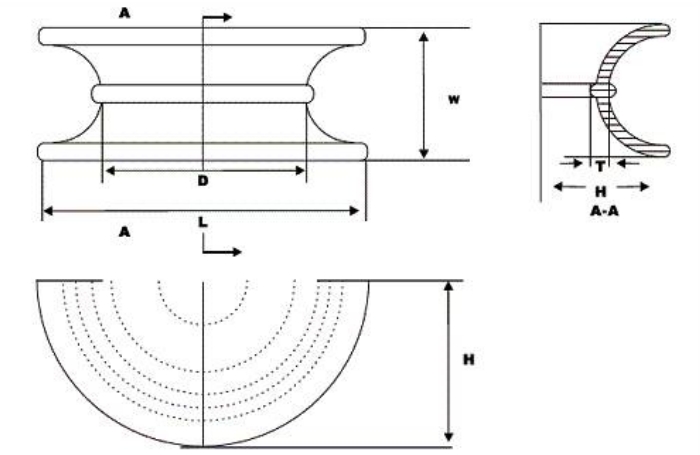

ceramic saddles drawing
Customization: Designed to meet your unique specifications and requirements, the ceramic raschig ring can be processed and customized accordingly.
Sturdy Durability: Demonstrates robust stability with resistance to acid and alkali corrosion, ensuring an extended service life.
Versatile Sizing: Available in a diverse range of sizes and comprehensive specifications, providing a broad selection to suit various needs.

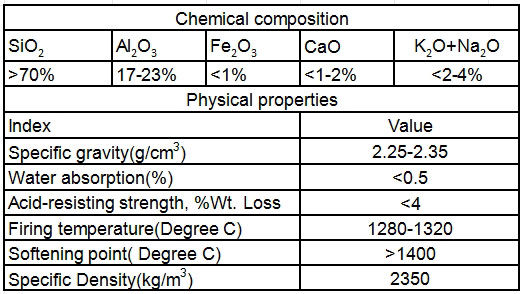

Chemical and physical data for ceramic saddles

Chemical and physical data for ceramic saddles

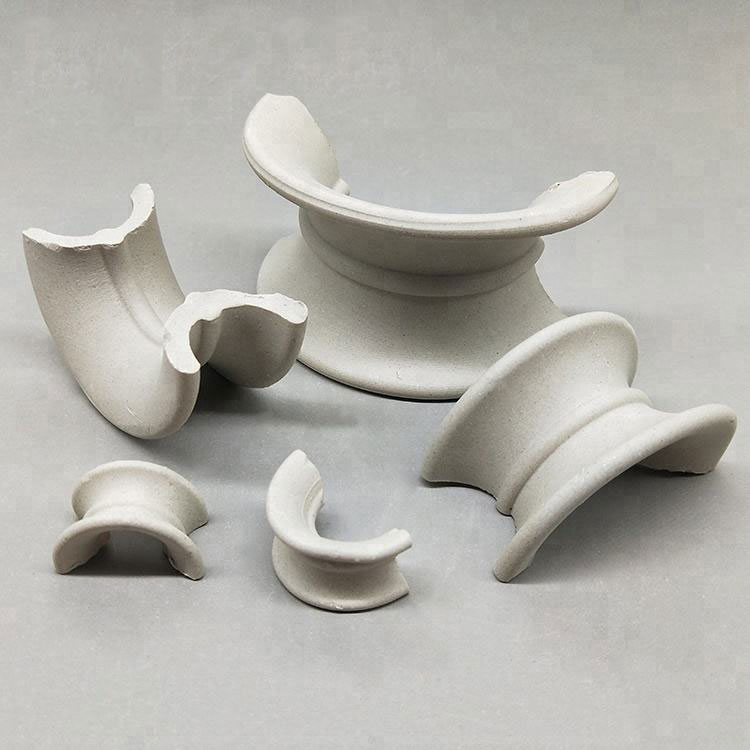

Ceramic intalox saddles Application

Ceramic Intalox Saddle is well-suited for high temperature conditions, exhibiting exceptional resistance to various organic acids, inorganic acids, and solutions, excluding hydrofluoric acid. It finds extensive application in mass transfer towers, distillation towers, drying towers, absorbing towers, and cooling towers within the chemical, petrochemical, and coal gas industries.

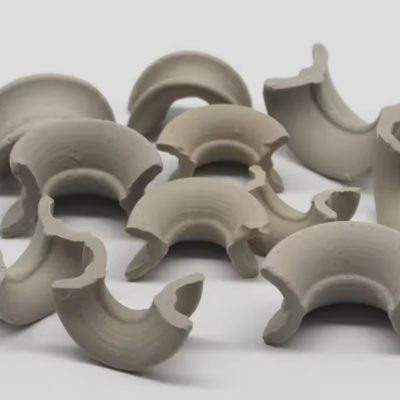

Packing & Delivery for Ceramic intalox saddles

ceramic intalox saddles package

Plastic woven bag, ton bag, carton box, or packaged as your request.

Certificate

certificate for ceramic saddles

Our Service

1. Free Sample
2. Full quality and material certification available
3. Available from stock
4. No minimum order quantities
