Description

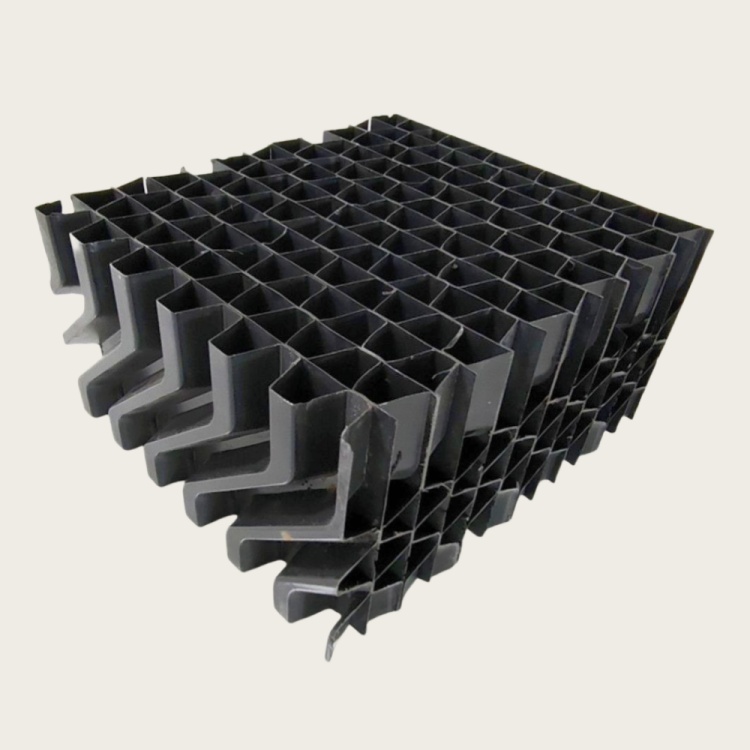

The D-15 Nest Drift Eliminators are designed to reduce drift while keeping air pressure drop low, which ultimately helps save on fan energy. With a minimal drift loss of just 0.003%, these eliminators are made from durable, UV-protected corrugated PVC sheets. They come in widths of 12 or 24 inches and lengths up to 10 feet, offering flexibility for various installations.
These high-efficiency D-15 Nesting Drift Eliminators are perfect for crossflow cooling towers, addressing today’s need for effective drift reduction. They combine excellent drift removal with low pressure drop, creating an incredibly efficient panel. The panels are made of 15-mil PVC corrugated sheets and 30-mil stiffener sheets, bonded together to form a strong and leak-proof assembly. The panels are solvent-bonded for extra strength, and the resulting structure is robust and reliable, measuring 24 inches wide and available in lengths up to 10 feet.

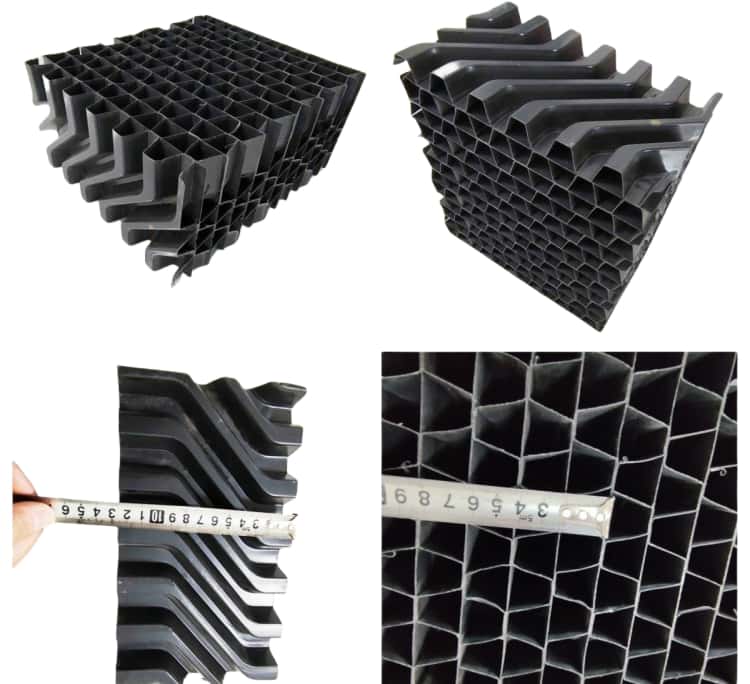

The panels feature a honeycomb design, with evenly spaced stiffener plates that provide structural rigidity and durability. These panels are assembled with solvent cement, which is resistant to the moist cooling tower environment. This cement ensures that no hardened glue residues are left in the air passages, maintaining optimal airflow. The panels are designed to nest together, maximizing installation efficiency and ensuring seamless drift removal. This interlocking feature eliminates any gaps that could potentially allow drift droplets to bypass the eliminator.
Key Features & Advantages:
- Improved water distribution.
- High thermal performance.
- Materials meet Cooling Tower Institute (CTI) standards.
- UV inhibitors added for sunlight protection.
- The nesting design eliminates gaps, providing seamless drift removal.
- Drift loss of just 0.003% based on circulating water flow (Test Method CTI-HBIK Standard 140).
Specifications:
- Sheet thickness: 0.3-0.6mm
- Sheet spacing: 25.4mm
- Dry weight: 7 kg/m²
- Module dimensions: As requested (Width: As requested, Length: As requested, Height: 150mm, 125mm/80mm or 65mm)
This makes the D-15 Nest Cooling Tower Cellular Drift Eliminator a top choice for cooling towers aiming for minimal drift loss and maximum efficiency.
