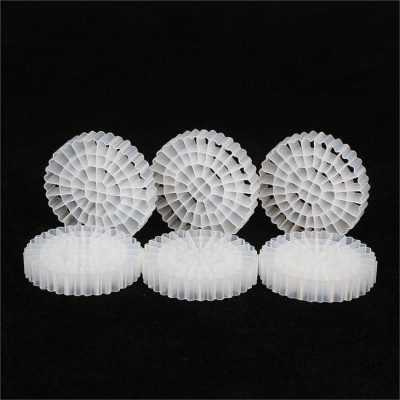

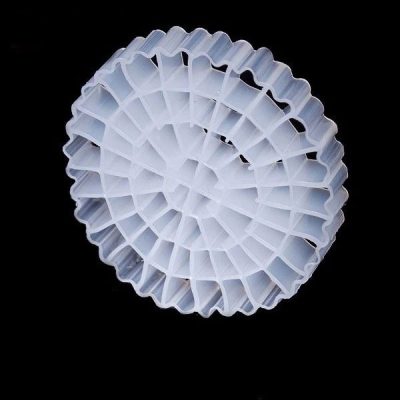

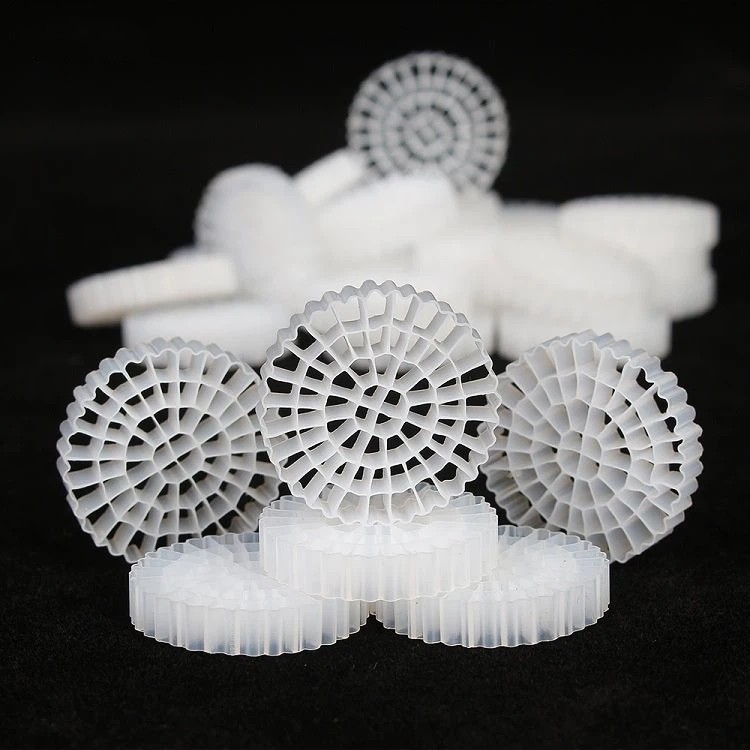

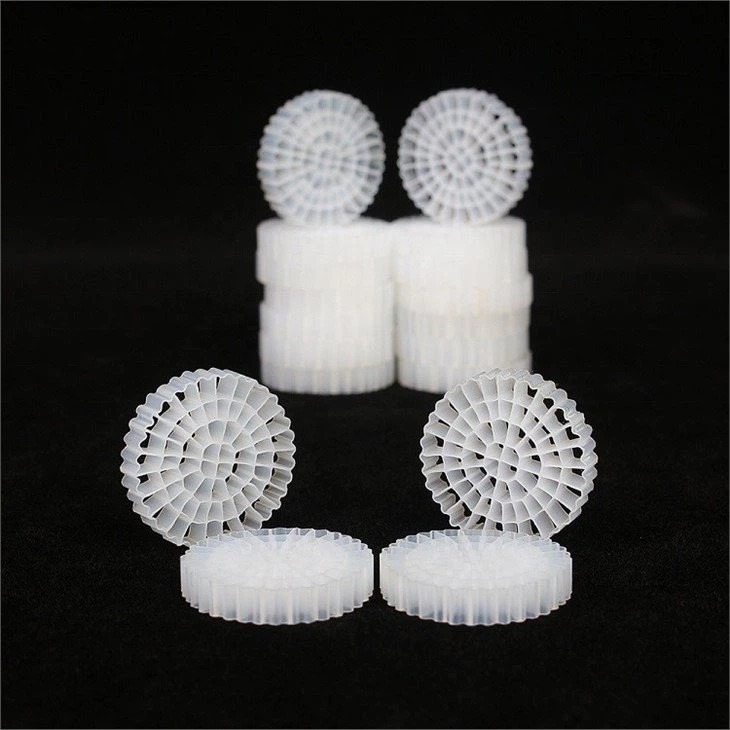

K5 Mbbr Media

K5 filter media is specially created for use in bead filters, standard pond filters, and aquarium filters. K5 filter media has an identical wheel-shaped pattern. it holds an extended preserved surface area of about 1200 m2 per m3.The wheel-shaped formation of K5 filter media is also called as K5 Micro filter media.

Description

The principle of MBBR process is to use the basic principle of biofilm method, by adding a certain number of suspended carriers to the reactor to improve the biomass and biological species in the reactor, so as to improve the treatment efficiency of the reactor. Because the density of the mbbr bio media is close to that of water, it is completely mixed with water during aeration, and the growth environment of microorganisms is gas, liquid and solid. The collision and shearing of the carrier in water make the air bubbles smaller and increase the utilization rate of oxygen.

K5 filter media is specially created for use in bead filters, standard pond filters, and aquarium filters. K5 filter media has an identical wheel-shaped pattern. it holds an extended preserved surface area of about 1200 m2 per m3.The wheel-shaped formation of K5 filter media is also called as K5 Micro filter media, invented particularly to form the most productive environment for the process of nitrification to occur. As K1 filter media evolves, bacteria colonize in the “reserved sections” of every piece of media serving to promote nitrification or denitrification, which can help in well-adjusted natural stability to be maintained in your pond to preserve fish in good health and healthy and clean water.

K5 mbbr media Features


1. The sludge concentration in the reactor is high, which is 5-10 times higher than that of the conventional activated sludge process, greatly accelerating the reaction speed.
2. Small head loss, not easy to block, no need for back washing, generally no need for return flow.
3. The suspended packing makes the nitrification and denitrification process go on at the same time, which can remove nitrogen and phosphorus well. COD removal rate up to 90%
4. The impact load resistance is very strong, which can resist large water impact load and maintain stable treatment effect in the actual project.
5. The service life shall be at least 20 years.
6. Low management cost.
7. Strong low temperature resistance. In low temperature environment, MBBR can also ensure a very high removal rate of ammonia nitrogen, and the effluent ammonia nitrogen can reach the standard stably.

Application of K5 MBBR Media


* Pulp and paper industry
* Food Beverage and drink wastewater
* Coke Steel Plant
* Sewage treatment plant
* Wastewater treatment
* Dairy Industry
* Auto industry
* Chemical industry
* Chemical waste
* Aquaculture fish farming and Koi Pond
* Integrated Container A²O
* Small footprint
* Dyeing Wastewater
* Wastewater treatment system
* Urban sewage treatment
* Municipal Wastewater Treatment

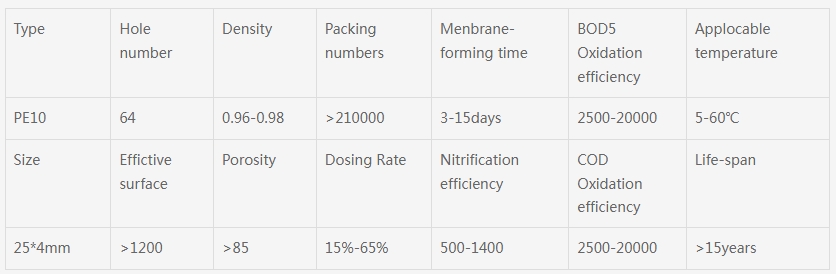

Technology Parameter

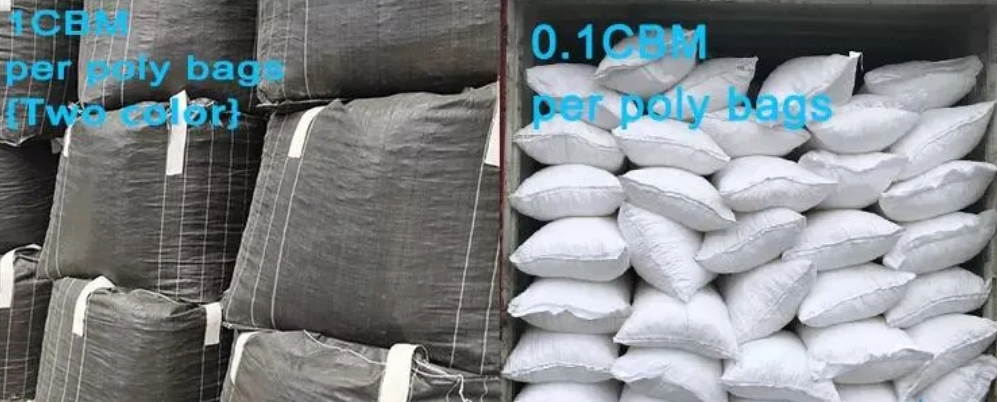

Package & Delivery

1: 0.1 CMB per polybag, a 40HQ container can load 70 CBM
2: 1.0 or 1.5 CBM per polybag, a 40HQ container can load 60CBM
3: Custom Package
