Description

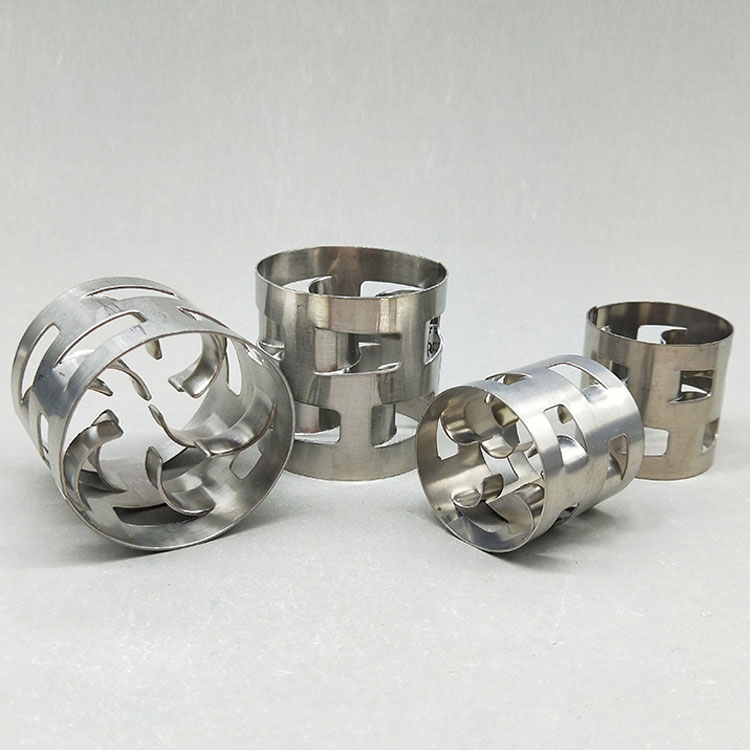

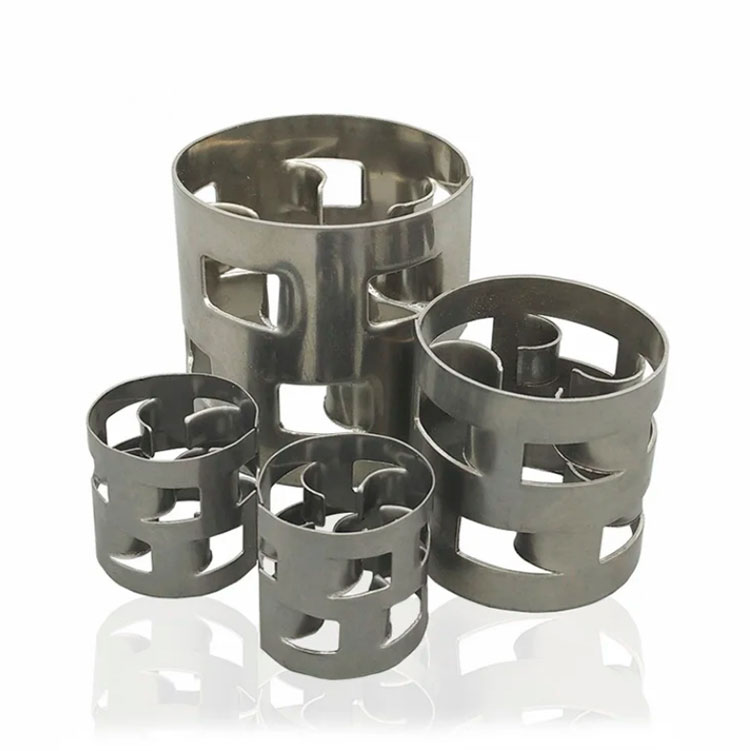

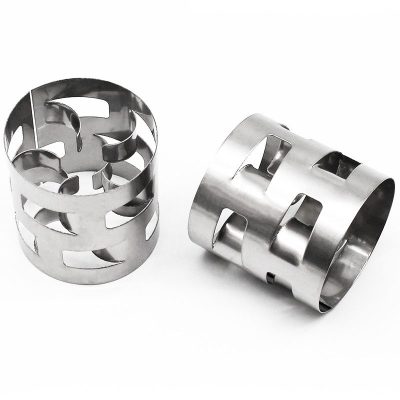

The Metal Pall ring also called Stainless Steel Metal Pall Ring is one of the most common and well known packing, use of sheet metal by punching in the ring out of the wall with two rows of fenestrae with leaves. Fenestrae in each row there are five tongue leaves, each leaf tongue ring, point to ring heart, almost in the center up, the location of the upper and lower levels staggered fenestrae, the general opening of the ring a total area of about 35% of wall area around Pall Ring packing as a result of in-the-loop to open a lot of window walls, making the tower the gas and liquid can move freely through the window, the current Central fill Powell was used by one of the main ring packing. Compared with raschig ring, it has half of pressure drop. Its efficiency can be improved 50%.
Metal Pall Ring will have a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from. Stainless Steel Metal Pall Rings minimize the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal pall ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions of the Metal pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the Metal pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting.The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc. The structure of Pall Ring improves distribution of gas-liquid.
Specification of Metal Pall Ring
Note:
The provided information pertains to stainless steel (AISI304) with the specified material thickness. Alternative wall thickness options are available upon request.
Available materials include carbon steel and various grades of stainless steel such as 304, 304L, 410, 316, and 316L.
Advantages of metal pall ring
Metal Pall Ring Application
Metal Pall Ring Packing finds extensive application in various processes, including:
- All types of separation processes
- Absorption plants
- Constant decompression plants
- Compounding ammonia plants
- Decarburization
- De-sulfuration
- Separation of ethyl benzene
- Separation of isooctane/methylbenzene
- Absorption
- Aeration
- Degassing
- Desorption
- Distillation
- Stripping
- Heat Recovery
- Extraction
Packing & Delivery for Metal Pall Ring
Plastic woven bag, ton bag, carton box. Port:shanghai; shenzhen, ningbo
Certificate
Our Service for metal pall ring
1.Quality: Excellent quality is our first pursuite, we have strict quality contral by our QC team.
2.Capacity: Constantly introducing new equipment to meet clients production requirment and market changing
3.Team: Specilized in Chemical Packing for more than 12 years, professional export team give customer comprehensive service
4.Efficiency: 24 hours on line service to solve all your questions.(Email, Trademanager, Skype, MSN, WhatsApp, Telphone), Factory direct sale price will be provided in 24 hours.
5.Customized: size & shape could be made as customer requirments.
6.Payment: flexible and diverse payment ways can be chosen, make you more convenient.
