Description

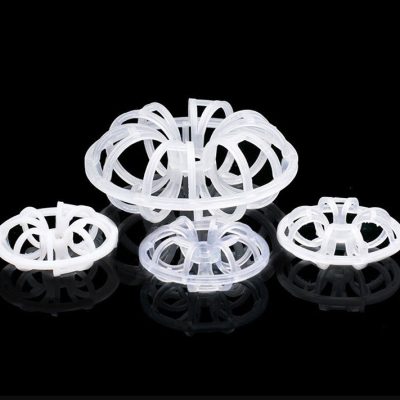

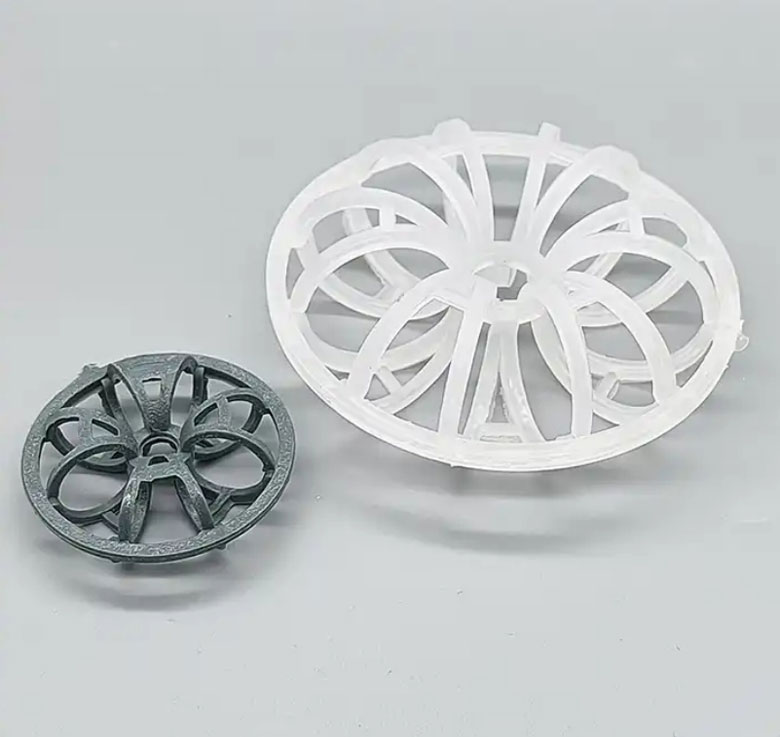

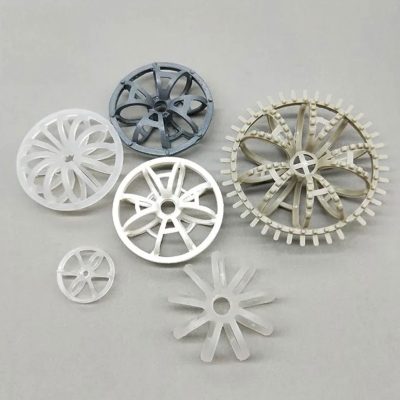

Plastic Tellerette Packing is is also named Plastic Teller Rosetter Ring or Teller Ring. It’s the first A.J.Teller by the United States in 1954 out of research and development, and therefore also often referred to as the garland wreath Taylor (Teller Rosette). Tellerette packing is constructed with a distinctive patented toroidal helix design, delivering a striking aesthetic and enhanced performance efficiency compared to conventional mass transfer packings, particulate collections, and heat transfers.
Tellerette packing boasts exceptional characteristics in mass and heat transfer efficiency, making it ideal for applications such as gas absorption and air conditioning. Widely employed as packing in systems requiring high corrosion resistance and minimal pressure drop, Tellerette packing finds extensive use in Gas Absorbers, Cooling Towers, Deaerators, Reactors, and various other gas-liquid contact systems.
Parameters of Plastic Tellerette Packing Ring
This Tellerette packing media is accessible in a diverse range of material options, including Polyethylene, Polypropylene, PVC, CPVC, Tefzel, and PVDF.Tellerette packing is available in various nominal packing sizes, specifically, #1R, #2R, #2K, #3R, and #3K. The corresponding maximum dimensions are 46mm, 70mm, 83mm, 95mm, and 105mm, respectively. Additionally, the loop heights are provided in 19mm, 25mm, 32mm, 38mm, and 56mm, respectively.
Tellerette Packing Features:
Enhanced Gas Flow Capacity:Allows utilization of smaller diameter and more cost-effective columns.
Retrofit Capability:Existing towers can be upgraded for increased capacity and enhanced efficiency.
Reduced Operating Costs:Lower pressure drop contributes to overall cost reduction during operation.
Fouling Minimization:High open area design minimizes fouling, promoting sustained efficiency.
Column Stability:Maintains high stability without classic flooding concerns.
Effective Liquid and Solid Impingement:Ensures effective impingement of both liquid droplets and solid particulate matter.
Prevents Channeling:When coupled with proper liquid distribution, eliminates the risk of channeling.
Advantages of Plastic Tellerette Ring
Low Pressure Drop
Low Weight
High efficiency of transfer
Big Void Ratio
Sufficiency gas-liquid Contact
Material Versatility:
Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) ,polyvinyiidene fluoride (PVDF)，The temperature in media ranges from 60 Degree C to 280 Degree C.
Application:
H2SO4/Ammonium Sulfate Industry: Absorber and scrubber for SO2, SO3, NH3.
Soda Industry: Chlorine drying tower.
Iron & Steel/Coke Industry: Desulfurization tower for COG, collector for COG middle/light oil, and gas cooling tower.
Oxygen Plant: Air cooling.
Thermal Power: Flue gas desulfurization.
Chemical Industry: Elimination of H2S, HCl, Cl2, HF, NOX, and recovery of organic solvents.
Pulp Industry: Oxidation in black/white liquor.
Water Purification: Stripping of ammonium, trihalomethane, trichloroethylene.
Sewage Treatment: Deodorization.
Packing & Delivery for Plastic Pall Ring
Plastic woven bag, ton bag, carton box. Port:shanghai; shenzhen, ningbo
